Centrifugal Blower Forward Curved

Home / Centrifugal Blower Forward Curved

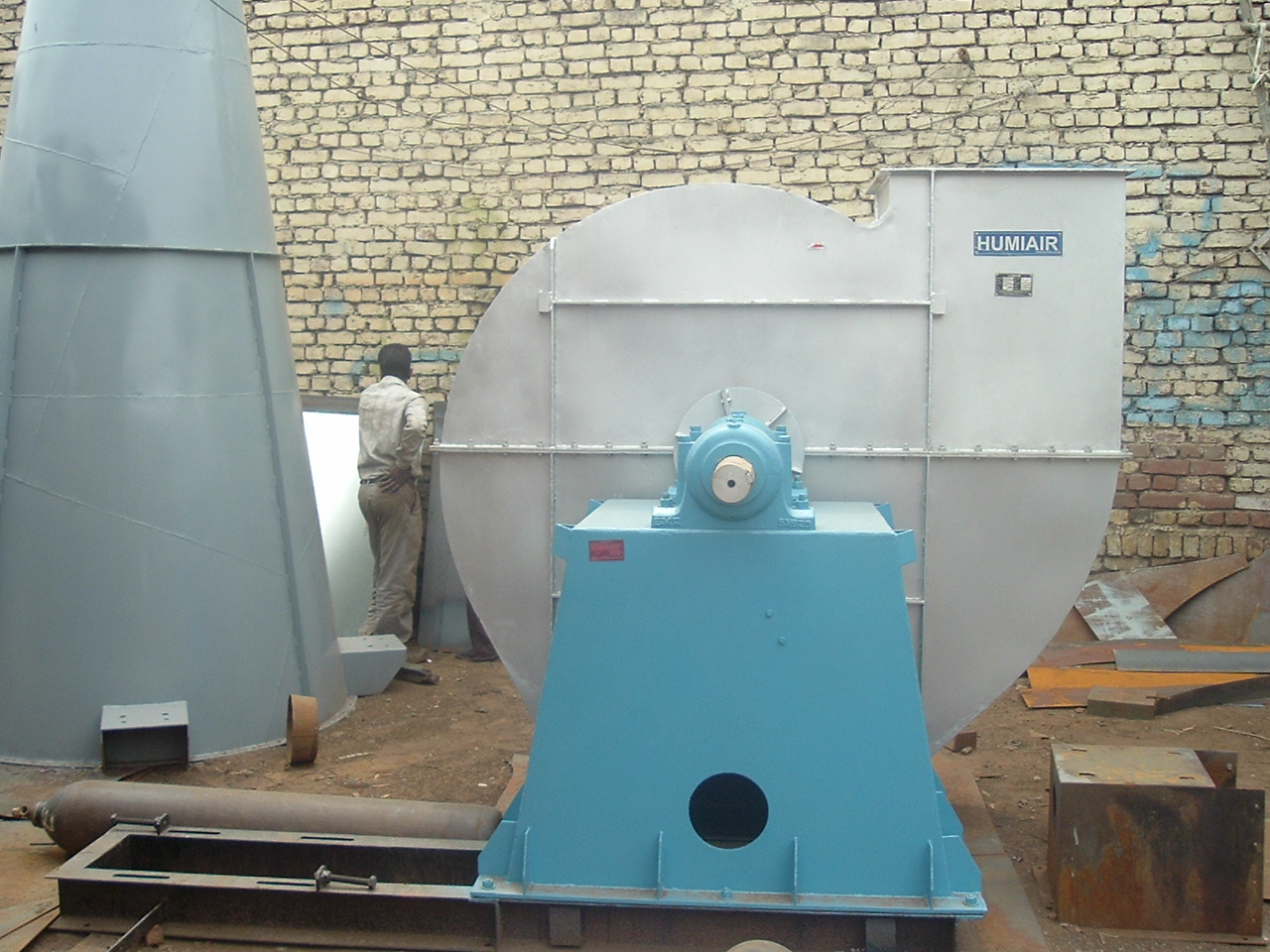

The HUFC series Centrifugal Blowers consist of Double Inlet Double Width (DIDW) centrifugal fans.

CENTRIFUGAL BLOWER (FORWARD CURVED)

The HUFC series available in :

  • Fan size : 300 to 1250mm
  • Air Volume : 3000 to 100000 CFM
  • Total Pressure: 25 to 150mmWG

Applications - Primary applications include low pressure heating, ventilating, and air conditioning applications such as domestic furnaces, central station units, and packaged air conditioning equipment from room type to roof top units.

QUESTIONNAIRE

SITE NAME * :
CONTACT PERSON * :
MOBILE * :
APPLICATION & LOCATION * :
AIR QTY.REQUIRED :
CMH / CFM
STATIC PRESSURE :
inch WG / mmWG
TEMPERATURE * :
CELCIUS
FARENHEIT
NUMBER OF INLET * :
DENSITY OF AIR/GAS * :
Ib/cu. ft.
kg/cu. m.
FAN SPEED :
RPM
OUTLET VELOCITY * :
DRIVE ARRANGEMENT * :
DIRECT DRIVE * :
BELT DRIVE * :
COUPLING * :
POWER AVAILABLE * :
VOLTS-415 * :
CYCLE-50Hz * :
PHASE-3 * :
OTHER FEATURES, IF ANY DESCRIBE * :
